Pressure Vessel heads

Antonius is specialized in the manufacture of vessel heads in various shapes and materials — Our production facilities are equipped for a wide range of sizes and thicknesses, precisely matched to the desired product. Of course, depending on the type of material.

Downloads

Inquiry checklist

Products

Antonius is a leading producer of complex shapes, vessel heads, cones,
expansion joints and other special products in exotic and special materials.

Torispherical Head (Klöpper-Head) DIN28011

6% OR 10% TORISPHERICAL HEADS

What we call Torispherical heads is also known by either Standard End or Decimal end in English. In German, they are known as Flachgewölbter Boden and Klöpper Boden (DIN 28011). These are mostly applied at lower to medium pressure vessels, the latter ofter at larger diameters such as for beer tanks. An example of the application of a lower pressure vessel would be a water tank, for example. We can produce these heads in a diameter ranging from 200 up to 10,500 mm and in thicknesses ranging from 3 to 120 mm.

Semi-ellipsoidal head (korbbogen-head) DIN 28013

We can produce these heads in a diameter ranging from 200 to 10,500 mm and in thicknesses ranging from 3 to 120 mm.

Ellipsoidal head

We can produce these heads in a diameter ranging from 200 to 10,500 mm and in thicknesses ranging from 3 to 120 mm.

Flat Head

Flat Heads are with flat surfaces, which makes them a perfect fit for installations that require flat inside surfaces. Flat heads are recommended to be ideal for no pressure applications. However, when used for pressure applications, these pressure vessel heads may turn out to be more costly than other heads. This is one of the reason why flat heads are predominantly used for storage tanks that stock state of matter at no pressure. These heads are also recommended in applications where lower head heights than ASME F&D heads are needed. We can produce these heads in variable diameters ranging from 200 to 10,000 mm and in thicknesses ranging from 3 to 50 mm.

Ask our experts

We can help you choose the best Vessel Heads to match your needs.

Flat end / SMS 484

Flat ends / heads are mostly used in very low pressure or atmospheric tanks.

Technical details

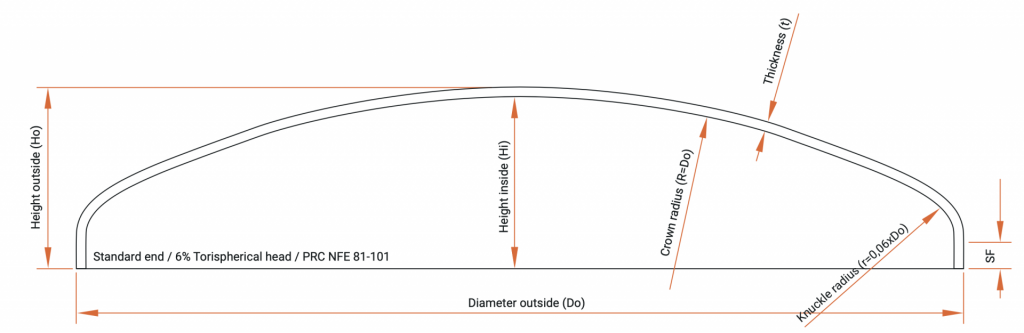

Standard end / 6% Torispherical head / PRC NFE 81-101

Standard heads are mostly used in very low pressure or atmospheric tanks.

Technical details

Decimal end / Klöpper head (acc. Din 28011) / 10% Torispherical head / GRC NFE 81-102

10% Torispherical heads/Klöpperheads are mostly used in pressure liquid (beer, water, juices) containing tanks.

Technical details

Korbbogen head (acc. Din 28013) / SMS 482

Korbbogen heads are very similar to the Elliptical 2:1 heads. Simply said the Korbbogen heads are the European elliptical heads and the Elliptical heads are the American Korbbogen heads.

Technical details

Elliptical head 2:1

Elliptical heads 2:1 are very similar to the Korbbogen heads. Simply said the Korbbogen heads are the European Elliptical heads and the Elliptical heads 2:1 are the American Korbbogen heads.

Technical details

Elliptical head 1,9:1 NFE 81-103

The elliptical 1,9:1 head shape is mostly used in the French region. This shape covers the other heads within the range, elliptical 2:1 heads and the Korbbogen heads, by his higher total height.

Technical details

Spherical cap

Contact

Materials

Capabilities

Terms and conditions

Privacyverklaring

reCAPTCHA

Do	Diameter Outside (mm)
t	Thickness
r	Knuckle radius	25 – 100mm
SF	Straight flange	20 – 60 mm
Ho	Height outside	SF + r + t
Disc diameter (DS) ø	Do + r + (2 x SF)
Capacity	(π / 4) x (Do – 2)² - 0.66 x Di x r²
Surface one side	(π / 4) x Ds²
Nett weight (kg)	2 x π x Ds² x t

Do	Diameter Outside (mm)
t	Thickness
r	Knuckle radius	0,06 x Do
R	Crown radius	Do
SF	Straight flange	20 – 60mm (on request)
Ho	height outside	0,1 x Do + SF
Disc diameter (Ds)ø
Capacity
Surface one side	(π / 4) x Ds²
Nett weight (kg)	2 x π x Ds² x t

Do	Diameter Outside (mm)
t	Thickness
r	Knuckle radius	0,1 x Do
R	Crown radius	Do
SF	Straight flange	20 – 100mm
Ho	Height outside	0,2 x Do + SF
Disc diameter (Ds) ø	(1,12 x Do) + (1,7 x SF)
Capacity	0,1 x (Do – 2 x t)³
Surface one side	(π / 4) x Ds²
Nett weight (kg)	2 x π x Ds² x t

Do	Diameter Outside (mm)
t	Thickness
r	Knuckle radius	0,154 x Do
R	Crown radius	0,8 x Do
SF	Straight flange	20 – 100mm
Ho	height outside	0,26 x Do
Disc diameter (Ds) ø	(1,174 x Do) + (1,7 x SF)
Capacity	0,13 x (Do – 2 x t)³
Surface one side	(π / 4) x Ds²
Nett weight (kg)	02 x π x Ds² x t

Di	Diameter Inside (mm)
t	Thickness
r	acc. Elliptical shape (UG-81)
R	acc. Elliptical shape (UG-81)
SF	Straight flange	20 – 100mm
Hi	Height inside	0,25 x Di
Disc diameter (Ds) ø	(1,174 x Do) + (1,7 x SF)
Capacity	0,13 x (Di)³
Surface one side	(π / 4) x Ds²
Nett weight (kg)	02 x π x Ds² x t
